Complete Audco plug valve range — 18 catalogue numbers across CI (IS:210 Gr.FG220) and CS (ASTM A216 WCB) body construction. Regular, short and large patterns. Wrench and gear operated variants.
Authorized Distributor
Click any catalogue number to expand specifications. Use the filter bar above to narrow by body material, pattern, ends or operator.
Brand: Flowserve / Audco
| Catalogue No. | MW11 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Table-D) |
| Operator | Wrench |
| Size Range | 15–150mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MW12 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Screwed BSP |
| Operator | Wrench |
| Size Range | 15–50mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MW13 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 125) |
| Operator | Wrench |
| Size Range | 15–150mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MW14 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Screwed NPT |
| Operator | Wrench |
| Size Range | 15–50mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | LW11 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Short |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Table-D) |
| Operator | Wrench |
| Size Range | 50–250mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | LW13 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Short |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 125) |
| Operator | Wrench |
| Size Range | 50–250mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MG11 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Table-D) |
| Operator | Gear |
| Size Range | 150–200mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MG13 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 125) |
| Operator | Gear |
| Size Range | 150–200mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | LG11 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Short |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Table-D) |
| Operator | Gear |
| Size Range | 200–300mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | LG13 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Short |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 125) |
| Operator | Gear |
| Size Range | 200–300mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | BG11 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Large |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Table-D) |
| Operator | Gear |
| Size Range | 300–350mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | BG13 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Large |
| Body Material | CI · IS:210 Gr.FG220 |
| Plug Material | IS:210 Gr.FG220 |
| Cover Material | IS:210 Gr.FG220 / IS 2062 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 125) |
| Operator | Gear |
| Size Range | 300–350mm |
| Brand | Flowserve · Audco (Authorized) |

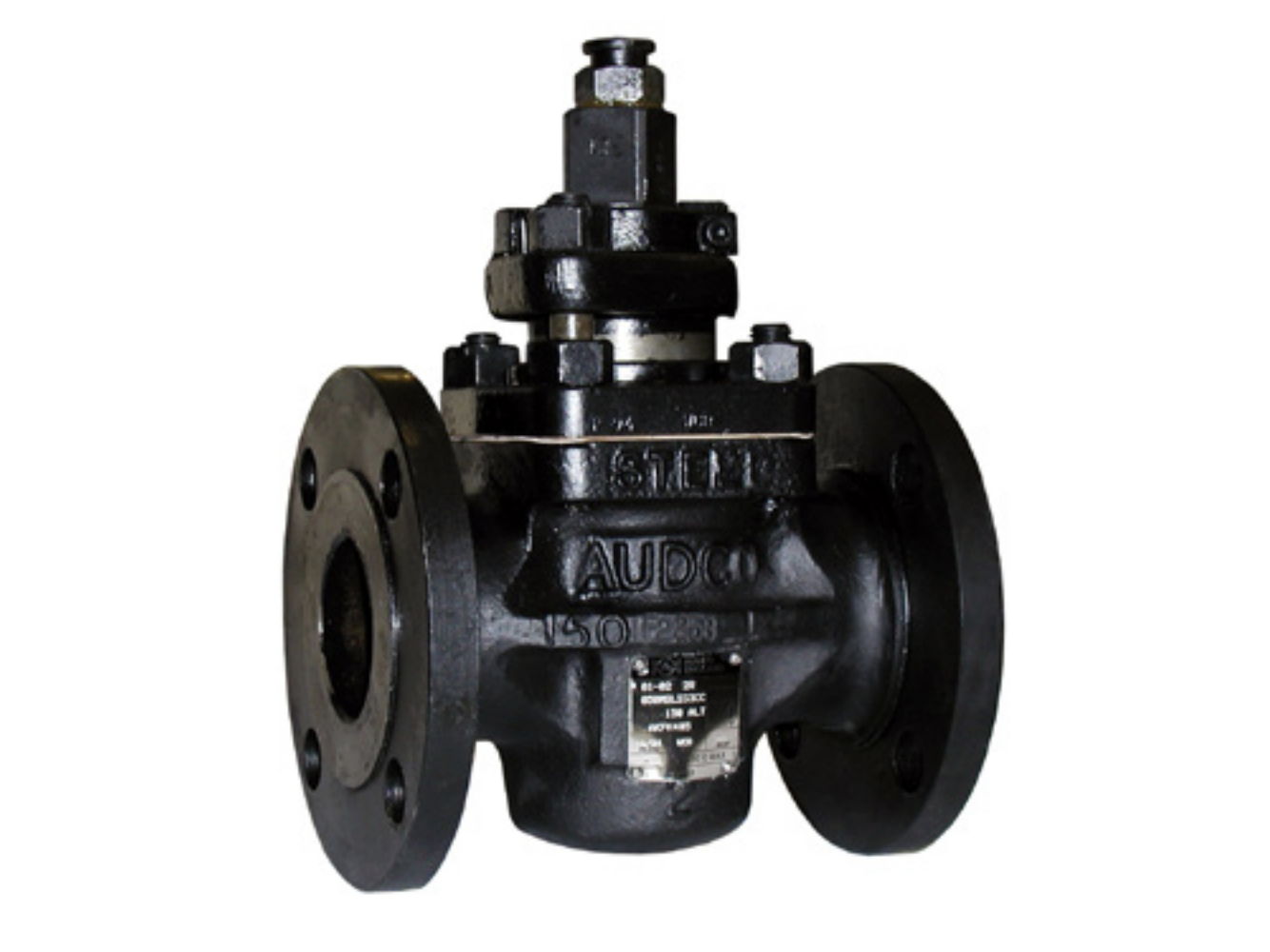

Brand: Flowserve / Audco
| Catalogue No. | MW32 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CS · ASTM A216 WCB |
| Plug Material | A216 WCB / A105 case-hardened + AFT |
| Cover Material | A216 WCB / A105 / A516 Gr.70 |
| Packing | Non-Asbestos |
| End Connection | Screwed BSP |
| Operator | Wrench |
| Size Range | 15–50mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MW33 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CS · ASTM A216 WCB |
| Plug Material | A216 WCB / A105 case-hardened + AFT |
| Cover Material | A216 WCB / A105 / A516 Gr.70 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 300) |
| Operator | Wrench |
| Size Range | 15–100mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MW34 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CS · ASTM A216 WCB |
| Plug Material | A216 WCB / A105 case-hardened + AFT |
| Cover Material | A216 WCB / A105 / A516 Gr.70 |
| Packing | Non-Asbestos |
| End Connection | Screwed NPT |
| Operator | Wrench |
| Size Range | 15–50mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | MW39 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Regular |
| Body Material | CS · ASTM A216 WCB |
| Plug Material | A216 WCB / A105 case-hardened + AFT |
| Cover Material | A216 WCB / A105 / A516 Gr.70 |
| Packing | Non-Asbestos |
| End Connection | Socket Weld |
| Operator | Wrench |
| Size Range | 15–50mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | LS23 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Short |
| Body Material | CS · ASTM A216 WCB |
| Plug Material | A216 WCB / A105 case-hardened + AFT |
| Cover Material | A216 WCB / A105 / A516 Gr.70 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 150) |
| Operator | Wrench |
| Size Range | 40–250mm |
| Brand | Flowserve · Audco (Authorized) |
Brand: Flowserve / Audco
| Catalogue No. | LGS23 |
|---|---|
| Valve Type | Plug Valve |
| Pattern | Short |
| Body Material | CS · ASTM A216 WCB |
| Plug Material | A216 WCB / A105 case-hardened + AFT |
| Cover Material | A216 WCB / A105 / A516 Gr.70 |
| Packing | Non-Asbestos |
| End Connection | Flanged (Class 150) |
| Operator | Gear |
| Size Range | 150–300mm |
| Brand | Flowserve · Audco (Authorized) |
